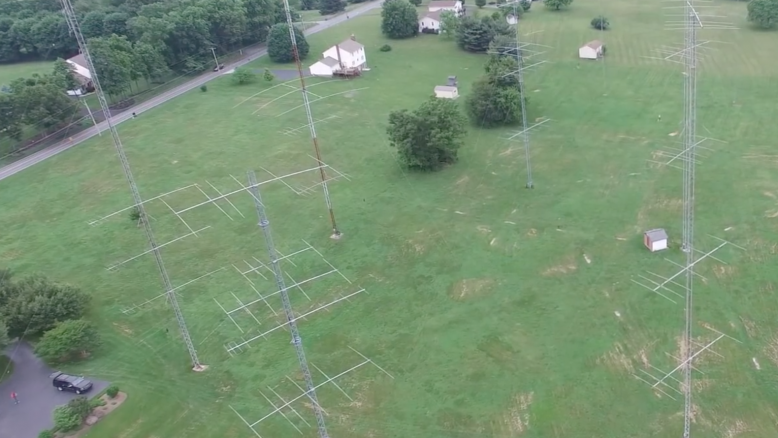

The W3LPL antennas farm:

160 Meters

– 4 square vertical array (Comtech switch box)
– sloping half wave dipole for the south

80 Meters

– Four 2 element horizontally polarized quads (tops at 50 meters)
for the NE, South, SW and West

40 Meters

– Two stacked full size 3 element Yagis (both fully rotatable)
on 15 meter booms at 30 and 60 meters

30 Meters

– 3 element full sized Yagi on a 10-meter boom at 35 meters

20 Meters

– 5 element Yagi on a 15-meter boom at 60 meters

– Two stacked 5 element Yagis (both fully rotatable)
on 15 meter booms at 15 and 30 meters

– Two stacked 5 element Yagis (fixed on Europe)
on 15 meter booms at 15 and 30 meters

17 Meters

– 5 element Yagi on a 12-meter boom at 40 meters

15 Meters

– 6 element Yagi on a 15-meter boom at 60 meters

– Three stacked 6 element Yagis on 15-meter booms
on a rotating tower at 15, 30 and 45 meters
with a WX0B Stackmatch to select any combination

– Two stacked 6 element Yagis (fixed on Europe)
on 15 meter booms at 15 and 30 meters

12 Meters

– 5 element Yagi on a 10-meter boom at 25 meters

10 Meters

– 7 element Yagi on a 15-meter boom at 60 meters

– 6 element Yagi on a 10-meter boom at 22 meters

– Two stacked 6 element Yagis (fixed on Europe)
on 10 meter booms at 10 and 20 meters

– 5 element Yagi fixed south on an 8-meter boom at 15 meters

Beverage receiving antennas

Ten Beverage antennas are located 300 meters
southeast of the transmitting antennas.

– Pair of phased 177-meter Beverages to 45 degrees
– 177 meter Beverage to 10 degrees
– 177 meter Beverage to 45 degrees
– 134 meter Beverage to 45 degrees
– 67 meter Beverage to 45 degrees
– 177 meter Beverage to 90 degrees
– 177 meter Beverage to 165 degrees
– 177 meter Beverage to 225 degrees
– 177 meter Beverage to 270 degrees
– 177 meter Beverage to 330 degrees
